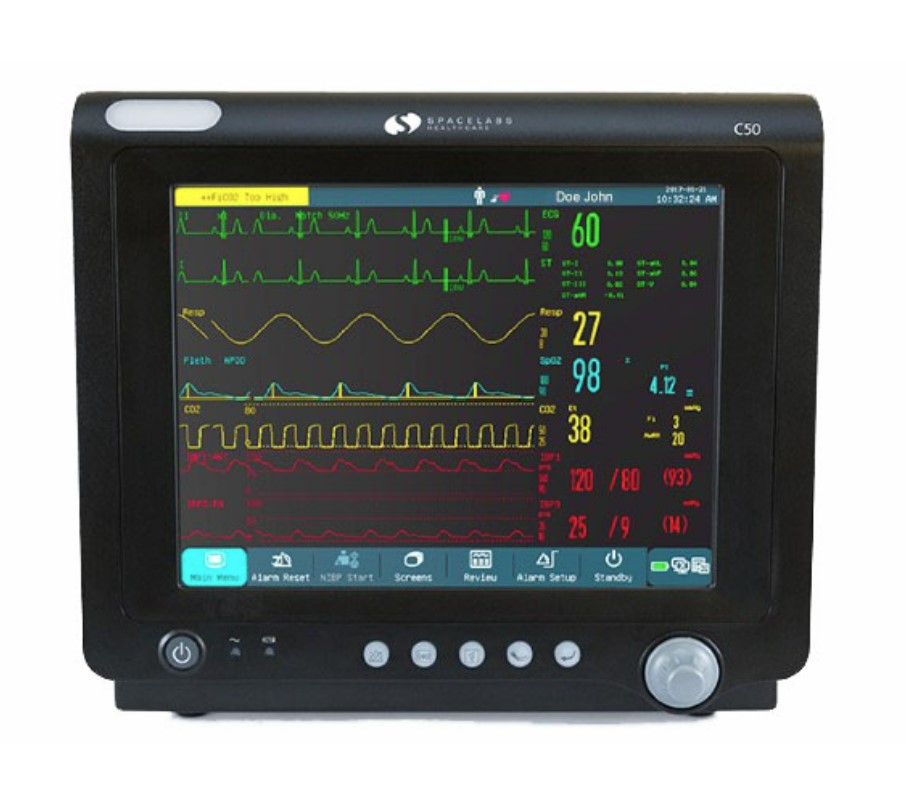

MedboX SAL - SPACELABS C50 Bedside Monitor
The Spacelabs C50 patient monitor is the ideal solution for quality clinical care while supporting your budget.
Measurements include ECG, SpO2, impedance respiration, non-invasive blood pressure, and temperature, with options for invasive pressure and ETCO2. The C50 provides flexibility for a variety of neonatal, pediatric, and adult environments.
VERSATILE
The C50 patient monitor comes configured with the high acuity monitoring features that you need for the best care of your patients. More than a bedside monitor, the C50 offers portability and accessibility from bedside through transport. The built-in handle and mounting options make it highly mobile and suitable for most clinical environments.
Pairing Spacelabs C50 multi-parameter monitor with STAR8800 MONITORING CENTRAL STATION (REF to HOSPITALS SOFTWARE & DATA Section for more information on STAR8800) enables you to easily setup a cost-effective centralized monitoring system capable of monitoring up to 128 beds wherever it is needed in the hospital.
USER-FRIENDLY
A friendly and intuitive user interface (UI) means caregivers can quickly access vital signs whenever the data is needed. Convenient functionality such as remote NIBP start / stop, bed review, and alarm management allows your clinical staff to perform at peak efficiency.
TRUSTWORTHY
The C50 and STAR8800 are engineered to meet the needs of caregivers and their patients. The intuitive design provides a high level of performance and reliability, supporting quality patient care.
QUICK LOOK
3, 7, or 12 lead ECG, Resp, SPO2, NIBP, Temp monitoring
Options: Invasive Pressure and ETCO2 monitoring
7 waveforms displayed
Includes OXYCRG (oxygen cardio-respirogram) and Drug, Hemodynamic, Ventilation, Oxygenation, and Renal calculation functions
User interface includes a 26.416 cm (10.4 inch) touchscreen, 5 buttons, and a rotary knob
Power supply has an internal battery (2 or 4 hour battery option) and external AC
Connections include, RS-232, VGA, VLAN, WLAN, and a multifuntional port
Interfaces with HL7 outbound
Optional 3 channel recorder with recording time of 8, 15, and 32 seconds or continuous recording
Data storage of 160 hour graphic and tabular trends and 24-hour 2-channel wave review
Dimensions (H x W x D): 291.7 mm (11.48 inches) × 250 mm (9.48 inches) × 146.5 mm (5.77 inches)
Weight: 3.3 kg (7.27 lbs)
Features may vary depending on configuration.
